Exploded dishwasher triac

Problem:    Exploded triac
Solution:   Replace triac
Brand:
Cost new:   £280
Cost of fix:120
Age:
Success?:   Yes

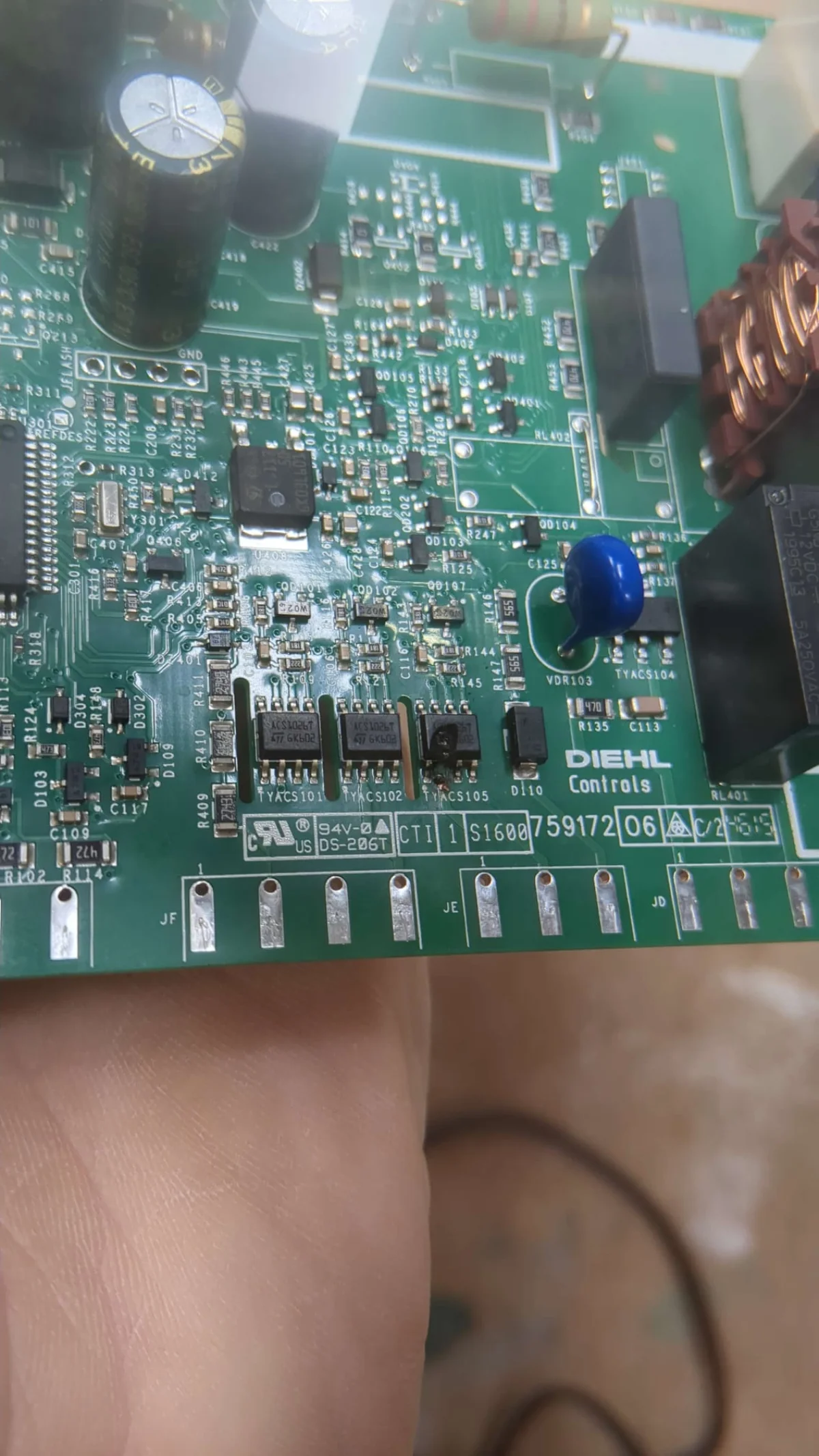

This was fun, somebody brought in the control board for a dishwasher where the triacs had violently exploded.

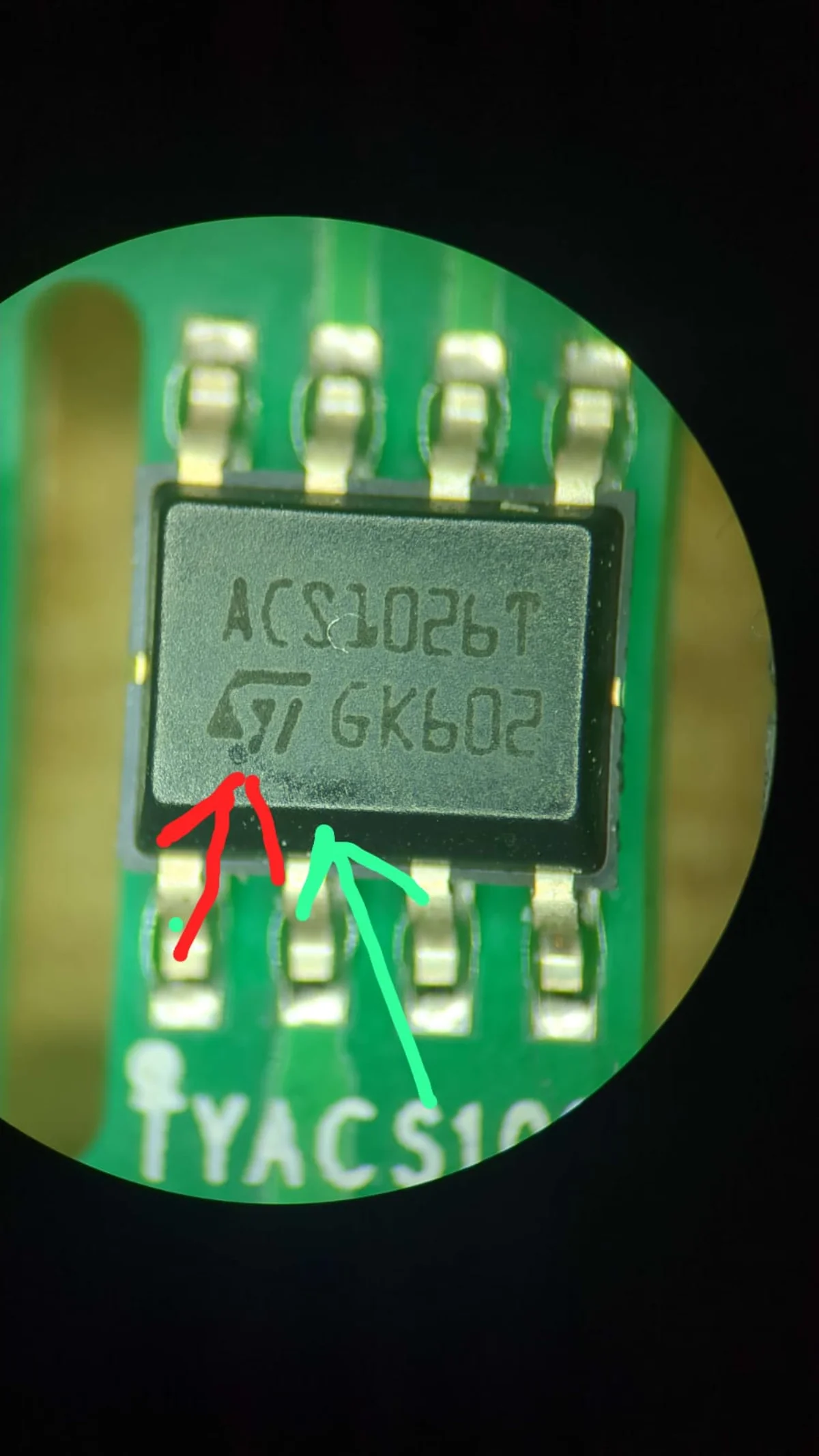

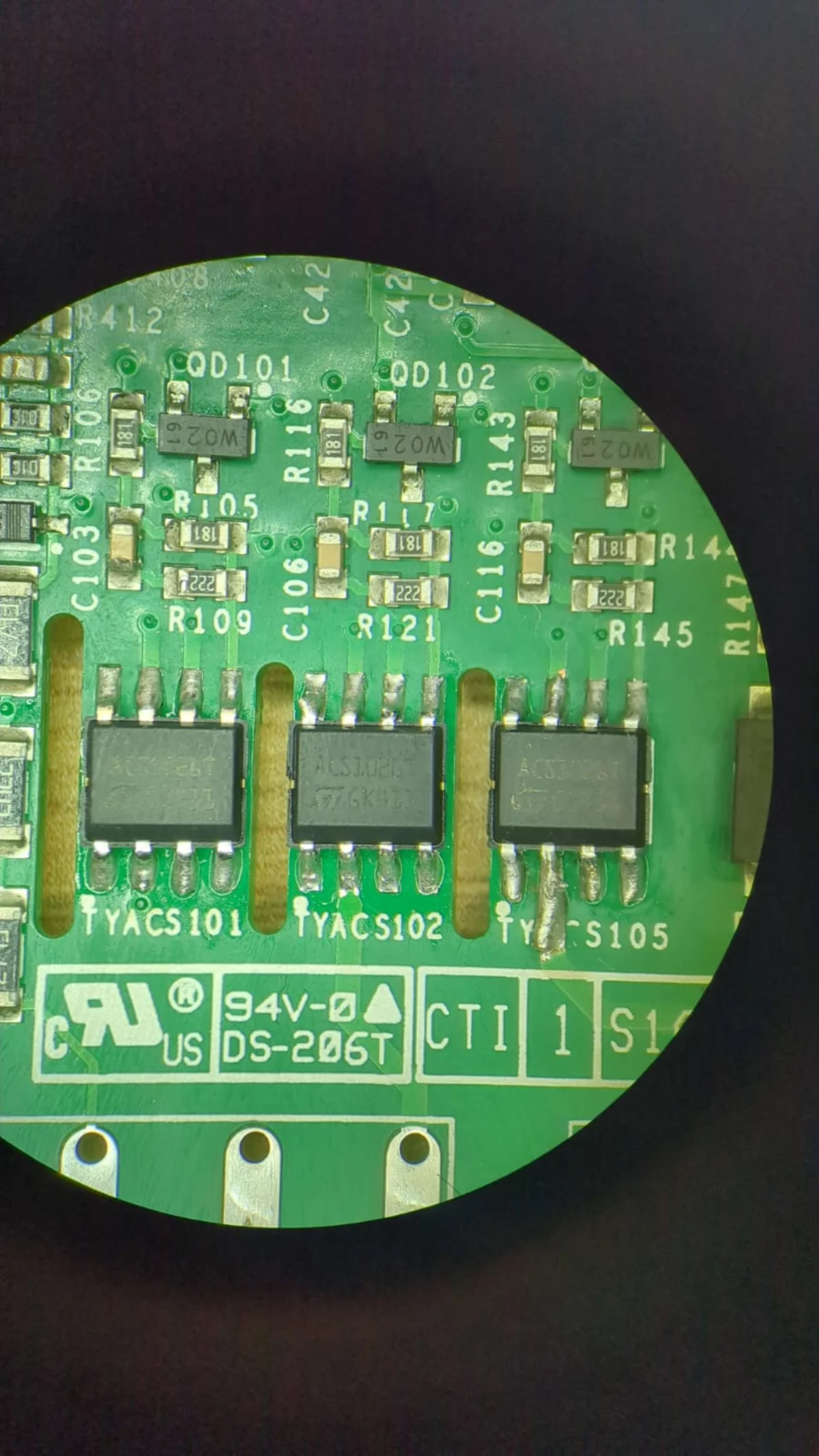

Looking at the pictures, it’s obvious one had a catastrophic failure, but then some of the other ones as indicated by the arrows have suspicious discolouration that I didn’t like. I ended up replacing all three of them, with the parts sourced online and when it was plugged back in it worked like a charm!

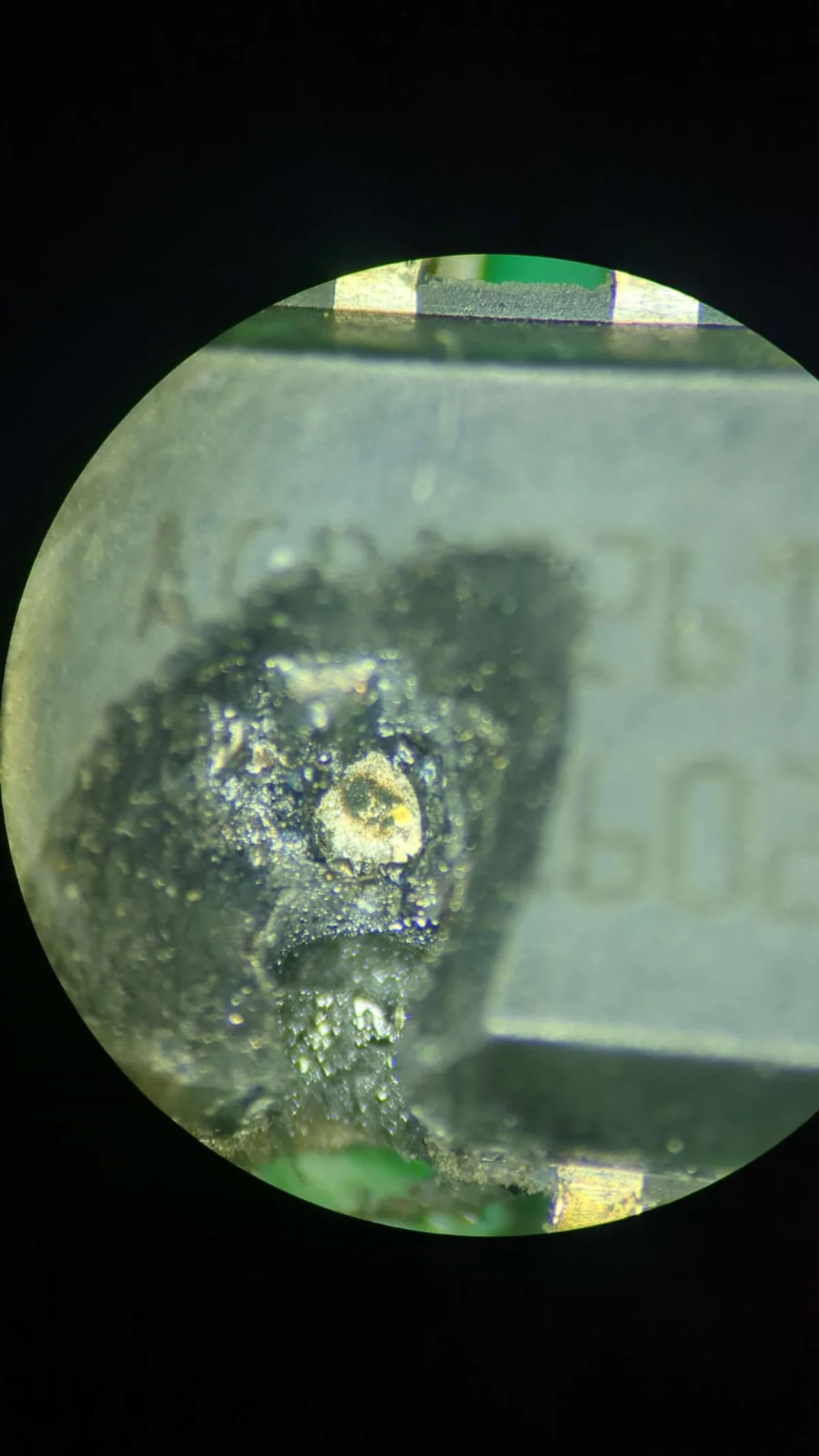

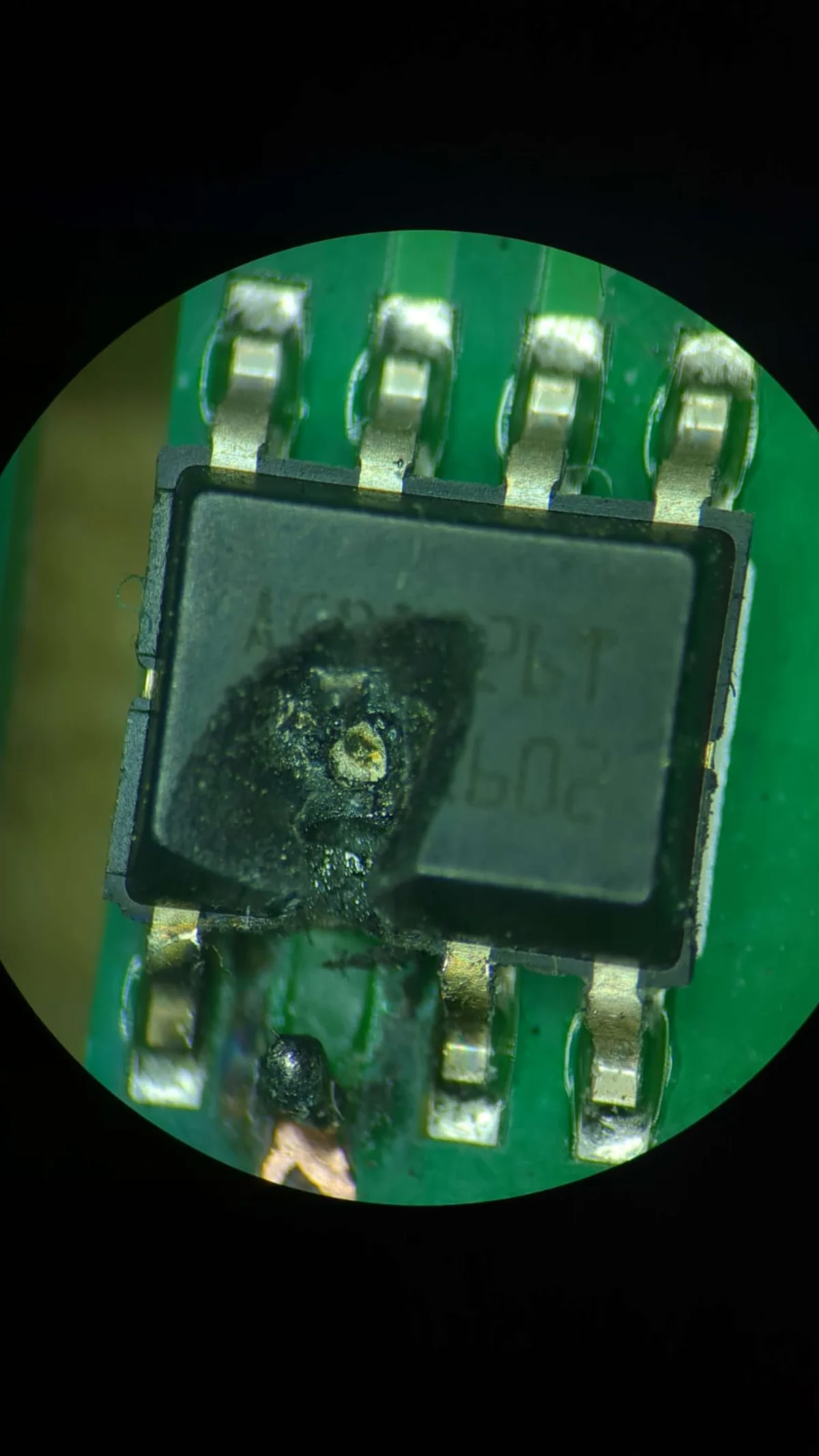

The pictures are fun because you can see straight down to the silicon as the explosion popped off the epoxy encapsulation of the IC
