Strimmer Cables

Problem:    Wire disconnected
Solution:   Re-connect and crimp wire
Brand:
Cost new:   £60
Cost of fix:0
Age:
Success?:   Yes

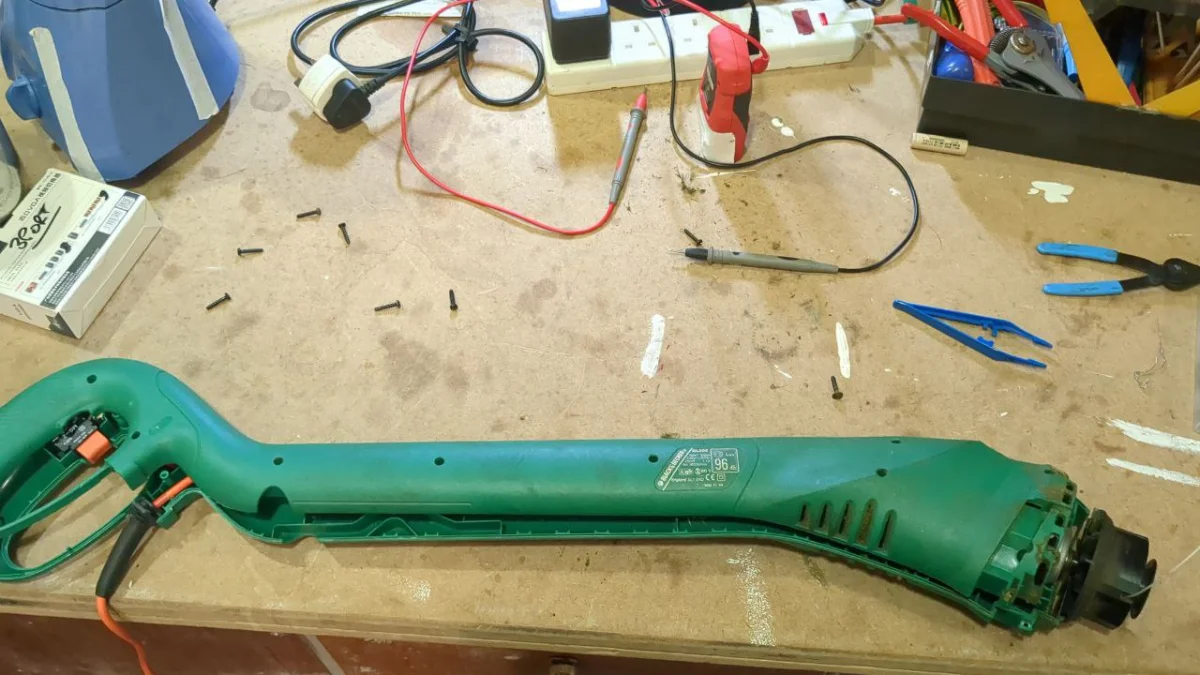

Tis the seasons for strimmers to be brought out of the garage! This one wouldn’t drive at all, and the motor wasn’t getting any mains voltage. Following the wires up I could measure the mains voltage getting into the housing, but just not to the motor contacts themselves.

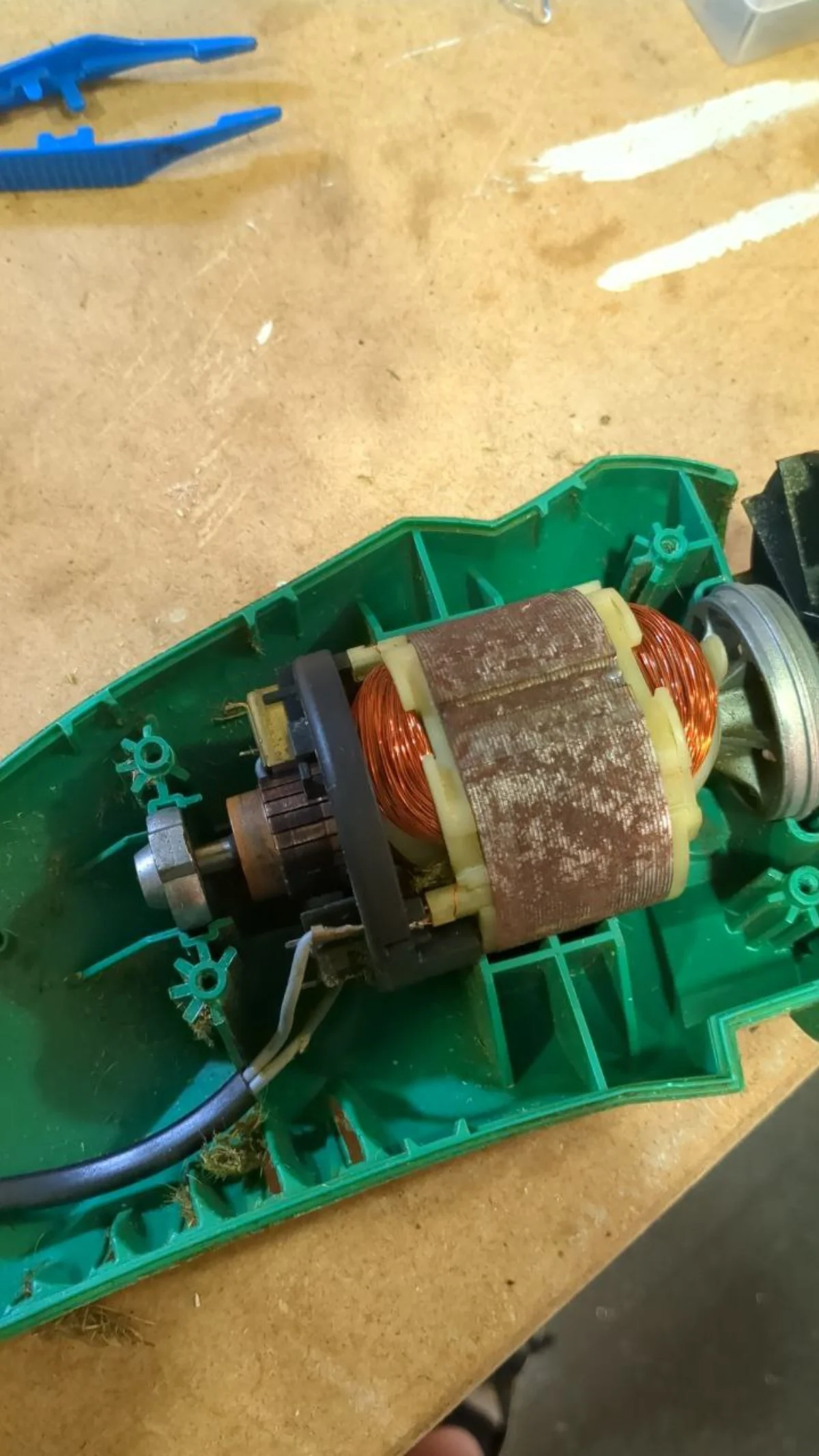

A bit of head scratching as surely this should be spinning, led me to notice that the brushes had been re-installed at some point backwards and were no longer making contact!! Flip em around and the strimmer is spinning happily again
